#include <stdint.h>
#include <stdbool.h>
#include "enc28j60-struct.example.h"

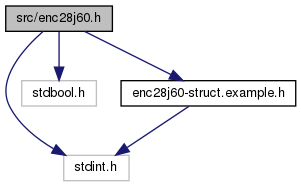

Include dependency graph for enc28j60.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	enc28j60_header
	Structure that has to prefix any variable length data when not using advanced SPI driver (that is when ENC28J60_HAS_ADVANCED_DRIVER is not defined). More...

struct	enc28j60_ethernet_header
	Ethernet header. More...

struct	enc28j60_txstatus
	Structure that contains data parsed from status footer appended by enc28j60 after frame that was transmitted or which transmission was aborted. More...

struct	enc28j60_init_struct
	Structure used for initialization of the enc28j60. More...

Macros
#define	ENC28J60_MAX_FRAMELEN 1500
	Max frame length which the conroller will accept. More...

#define	ENC28J60_MAX_FRAMELEN_ETH 1518
	Maximum frame length including ethernet header and checksum.

#define	ENC28J60_MEMORY_SIZE 0x2000
	Size of the enc28j60's memory.

Typedefs
typedef struct enc28j60_header	enc28j60_header
	Structure that has to prefix any variable length data when not using advanced SPI driver (that is when ENC28J60_HAS_ADVANCED_DRIVER is not defined). More...

typedef struct enc28j60_ethernet_header	enc28j60_ethernet_header
	Ethernet header.

typedef struct enc28j60_txstatus	enc28j60_txstatus
	Structure that contains data parsed from status footer appended by enc28j60 after frame that was transmitted or which transmission was aborted.

typedef void(*	enc28j60_spi_callback) (enc28j60 *instance, int custom_error_code)
	Callback used internally and externally. More...

typedef struct enc28j60_init_struct	enc28j60_init_struct
	Structure used for initialization of the enc28j60.

Functions
int	enc28j60_blockingio (enc28j60 ins, const char tx, char *rx, unsigned length)
	Performs IO on enc28j60. More...

int	enc28j60_ensurebank (enc28j60 *ins, uint8_t bank)
	Ensures that correct bank is currently selected. More...

int	enc28j60_io8 (enc28j60 ins, uint8_t op, uint8_t reg, uint8_t val, uint8_t out)
	Performs given IO operation on given 8-bit register until it succeeds or fails with unrepairable error. More...

int	enc28j60_io16 (enc28j60 ins, uint8_t op, uint8_t reg, uint16_t val, uint16_t out)
	Performs given IO operation on given register 16bit until it succeeds or fails with unrepairable error. More...

int	enc28j60_read8bitreg (enc28j60 ins, uint8_t reg, uint8_t content)
	Read value of given 8-bit register and store it in `*content` if not `content` is not null. More...

int	enc28j60_write8bitreg (enc28j60 *ins, uint8_t reg, uint8_t content)
	Write given value `content` into given 8-bit register. More...

int	enc28j60_clear8bitreg (enc28j60 *ins, uint8_t reg, uint8_t content)
	Clears bits given by `content` from given 8-bit register. More...

int	enc28j60_set8bitreg (enc28j60 *ins, uint8_t reg, uint8_t content)
	Sets bits given by `content` in given 8-bit register. More...

int	enc28j60_read16bitreg (enc28j60 ins, uint8_t reg, uint16_t content)
	Read value of given 16-bit register and store it in `*content` if not `content` is not null. More...

int	enc28j60_write16bitreg (enc28j60 *ins, uint8_t reg, uint16_t content)
	Write given value `content` into given 16-bit register. More...

int	enc28j60_clear16bitreg (enc28j60 *ins, uint8_t reg, uint16_t content)
	Clears bits given by `content` from given 16-bit register. More...

int	enc28j60_set16bitreg (enc28j60 *ins, uint8_t reg, uint16_t content)
	Sets bits given by `content` in given 16-bit register. More...

int	enc28j60_readphyreg (enc28j60 ins, uint8_t reg, uint16_t content)
	Read from PHY register. More...

int	enc28j60_writephyreg (enc28j60 *ins, uint8_t reg, uint16_t content)
	Write into PHY register. More...

int	enc28j60_readrevision (enc28j60 ins, uint8_t rev)
	Reads the revision number into `*rev`. More...

int	enc28j60_softreset (enc28j60 *ins)
	Sends soft-reset and waits until the enc28j60 is operational again. More...

int	enc28j60_init (enc28j60 ins, enc28j60_init_struct init)
	Initializes the enc28j60. More...

int	enc28j60_init_bank (enc28j60 *ins)
	Reads the currently selected bank into `ins->bank`. More...

int	enc28j60_init_mac (enc28j60 *ins, char mac_addr[6])
	Initializes the MAC address. More...

int	enc28j60_writewritepointer (enc28j60 *ins, uint16_t ptr)
	Writes the EWRPTL:EWRPTH registers with given value. More...

int	enc28j60_readwritepointer (enc28j60 ins, uint16_t ptr)
	Reads the content of EWRPTL:EWRPTH register into `*ptr` if `ptr` is not null. More...

int	enc28j60_writereadpointer (enc28j60 *ins, uint16_t ptr)
	Writes the ERDPTL:ERDPTH registers with given value. More...

int	enc28j60_readreadpointer (enc28j60 ins, uint16_t ptr)
	Reads the content of ERDPTL:ERDPTH register into `*ptr` if `ptr` is not null. More...

int	enc28j60_init_txbuffer (enc28j60 *ins, uint16_t start, uint16_t length)
	Writes the ETXSTL:ETXSTH and ETXNDL:ETXNDH pointers. More...

int	enc28j60_write (enc28j60 ins, uint16_t start_ptr, char frame, uint16_t length, enc28j60_spi_callback on_finish)
	Writes entire frame into enc28j60's memory. More...

int	enc28j60_writeframe (enc28j60 ins, uint8_t control, uint16_t start_ptr, char frame, uint16_t length, enc28j60_spi_callback on_finish)
	Writes control byte and entire frame into enc28j60's memory. More...

int	enc28j60_istx (enc28j60 ins, bool status)
	Checks whenever the enc28j60 still transmits a frame and writes the corresponding status into `*status` More...

int	enc28j60_jointx (enc28j60 *ins)
	Waits until the transmission (if any in progress) finishes and then returns (or in case of unrepairable error it may return sooner). More...

int	enc28j60_cleartxflags (enc28j60 *ins)
	Clears EIR.TXIF and EIR.TXERIF flags. More...

int	enc28j60_transmitframe (enc28j60 *ins)
	Sets the ECON1.TXRTS flag in order to start transmission. More...

int	enc28j60_aftertx (enc28j60 *ins)
	Should be called when transmission finishes in order to avoid bug described in errata #12. More...

int	enc28j60_readtxstatus (enc28j60 ins, uint16_t tx_start, uint16_t tx_length, enc28j60_txstatus status)
	Reads the seven-byte-long status vector written after TXed frame. More...

void	enc28j60_decrementretries (unsigned *remaining_tries)
	Decrements `*remaining_tries` (if the pointer is not null) by one. More...

bool	enc28j60_shouldretransmit (enc28j60_txstatus *status, unsigned remaining_tries)
	Checks for late collision and returns true if late collision happened and remaining_tries is not zero. More...

int	enc28j60_transmitframeblocking (enc28j60 *ins, uint16_t start_ptr, uint16_t length)
	Writes an ethernet frame of given length into enc28j60's memory starting at given pointer and transmits it with given control flags. More...

int	enc28j60_read_try (enc28j60 ins, char frame, uint16_t length, enc28j60_spi_callback on_finish)
	Try to read from enc28j60's memory. More...

int	enc28j60_read (enc28j60 ins, uint16_t ptr, char rx, uint16_t length, enc28j60_spi_callback on_finish)
	Try to read from enc28j60's memory. More...

int	enc28j60_readrxframescount (enc28j60 ins, uint8_t cnt)
	Reads the number of received frames waiting to be processed in the buffer memory (reds the EPKTCNT register). More...

int	enc28j60_init_rxbuffer (enc28j60 *ins, uint16_t start, uint16_t end)
	Claims space for RX buffer. More...

int	enc28j60_readframe (enc28j60 ins, char frame, uint16_t max_length, enc28j60_spi_callback on_finish)
	Reads six-bytes-long header and then reads the frame of given max length into memory location pointed to by `frame`. More...

int	enc28j60_advancerxreadpointer (enc28j60 *ins)
	Writes the ERXRDPTL:ERXRDPTH registers-pointer with appropriate value to free up space in the buffer. More...

int	enc28j60_finishreadframe (enc28j60 *ins)
	Writes the ERXRDPTL:ERXRDPTH registers-pointer with appropriate value to free up space in the buffer and decrements EPKTCNT register by one. More...

int	enc28j60_receiveframeblocking (enc28j60 ins, char frame, uint16_t max_length, enc28j60_tick timeout)
	Wait until there is frame available in the buffer, read it into local memory, do cleanup and return. More...

int	enc28j60_enablerx (enc28j60 *ins)
	Enable reception of frames. More...

int	enc28j60_disablerx (enc28j60 *ins)
	Disable reception of frames. More...

int	enc28j60_discardcrcerrors (enc28j60 *ins, bool discard)
	Discard frames that have invalid CRC checksum present. More...

int	enc28j60_enablemulticast (enc28j60 *ins, bool enable)
	Enable reception of frames with multicast destination address. More...

int	enc28j60_enablebroadcast (enc28j60 *ins, bool enable)
	Enable reception of frames with broadcast destination address. More...

Detailed Description

Part of enc28j60 driver.

Author: Dalibor Drgon dalib.nosp@m.or.d.nosp@m.rgon@.nosp@m.gmai.nosp@m.l.com

Version: 1.0

Date: 2020-05-01

Copyright: Copyright (c) 2020 Dalibor Drgon dalib.nosp@m.or.d.nosp@m.rgon@.nosp@m.gmai.nosp@m.l.com This code is licensed under MIT license (see LICENSE.txt for details)

Macro Definition Documentation

◆ ENC28J60_MAX_FRAMELEN

#define ENC28J60_MAX_FRAMELEN 1500

Max frame length which the conroller will accept.

Both for RX and TX. This means that we can store up to 5 full frames.

Typedef Documentation

◆ enc28j60_header

typedef struct enc28j60_header enc28j60_header

Structure that has to prefix any variable length data when not using advanced SPI driver (that is when ENC28J60_HAS_ADVANCED_DRIVER is not defined).

The correct allocation and usage is as follows:

enc28j60 eth1;
//...
static char data[ENC28J60_MAX_FRAME_LENGTH_ETH + sizeof(enc28j60_header)];
enc28j60_receiveframeblocking(&eth1, data, sizeof(data));
printf("Received frame of length %u\n", eth1.length);
char *frame = &data[sizeof(enc28j60_header)];
printf("First byte is %02X, the last is %02X\n", frame[0], frame[eth1.length-1]);

◆ enc28j60_spi_callback

typedef void(* enc28j60_spi_callback) (enc28j60 *instance, int custom_error_code)

Callback used internally and externally.

Accepts pointer to enc28j60 and error code indicating result (0 means success, anything else is treated as error).

Function Documentation

◆ enc28j60_blockingio()

int enc28j60_blockingio	(	enc28j60 *	ins,
		const char *	tx,
		char *	rx,
		unsigned	length
	)

Performs IO on enc28j60.

Internally, this calls enc28j60_spi_transfer() until it succeedes or fails with unrepairable error. Because of this, the request has to be repeatable (has to be read/write to register, cannot be read/write to buffer memory as the read and write pointers get internally incremented) in case the transfer fails and is repeated.

Parameters

ins	Enc28j60 pointer
tx	Non-null pointer to buffer to be transmitted
rx	Pointer where the received data will be saved (can be null)
length	Length of the `tx` and `rx` buffers.

Returns: int Zero on success or non-zero error in case of unrepairable error.

◆ enc28j60_ensurebank()

int enc28j60_ensurebank	(	enc28j60 *	ins,
		uint8_t	bank
	)

Ensures that correct bank is currently selected.

Parameters

ins	Enc28j60 pointer
bank	Register bank to be selected

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_io8()

int enc28j60_io8	(	enc28j60 *	ins,
		uint8_t	op,
		uint8_t	reg,
		uint8_t	val,
		uint8_t *	out
	)

Performs given IO operation on given 8-bit register until it succeeds or fails with unrepairable error.

Parameters

ins	Enc28j60 pointer
op	Operation to be performed
reg	Register on which the operation will be performed
val	Value to be sent
out	If not null, read value will be written here.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_io16()

int enc28j60_io16	(	enc28j60 *	ins,
		uint8_t	op,
		uint8_t	reg,
		uint16_t	val,
		uint16_t *	out
	)

Performs given IO operation on given register 16bit until it succeeds or fails with unrepairable error.

Parameters

ins	Enc28j60 pointer
op	Operation to be performed
reg	Register on which the operation will be performed
val	Value to be sent
out	If not null, read value will be written here.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_read8bitreg()

int enc28j60_read8bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint8_t *	content
	)

Read value of given 8-bit register and store it in *content if not content is not null.

Parameters

ins	Enc28j60 pointer
reg	Register from which to read.
content	If not null, read value will be written here.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_write8bitreg()

int enc28j60_write8bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint8_t	content
	)

Write given value content into given 8-bit register.

Parameters

ins	Enc28j60 pointer
reg	Register to be modified
content	New value of the register.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_clear8bitreg()

int enc28j60_clear8bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint8_t	content
	)

Clears bits given by content from given 8-bit register.

Parameters

ins	Enc28j60 pointer
reg	Register to be modified
content	Bits to be cleared

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_set8bitreg()

int enc28j60_set8bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint8_t	content
	)

Sets bits given by content in given 8-bit register.

Parameters

ins	Enc28j60 pointer
reg	Register to be modified
content	Bits to be set

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_read16bitreg()

int enc28j60_read16bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint16_t *	content
	)

Read value of given 16-bit register and store it in *content if not content is not null.

Parameters

ins	Enc28j60 pointer
reg	Register from which to read.
content	If not null, read value will be written here.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_write16bitreg()

int enc28j60_write16bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint16_t	content
	)

Write given value content into given 16-bit register.

Parameters

ins	Enc28j60 pointer
reg	Register to be modified
content	New value of the register.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_clear16bitreg()

int enc28j60_clear16bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint16_t	content
	)

Clears bits given by content from given 16-bit register.

Parameters

ins	Enc28j60 pointer
reg	Register to be modified
content	Bits to be cleared

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_set16bitreg()

int enc28j60_set16bitreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint16_t	content
	)

Sets bits given by content in given 16-bit register.

Parameters

ins	Enc28j60 pointer
reg	Register to be modified
content	Bits to be set

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_readphyreg()

int enc28j60_readphyreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint16_t *	content
	)

Read from PHY register.

Parameters

ins	Enc28j60 pointer
reg	Register to be read
content	Where to write the register value

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_writephyreg()

int enc28j60_writephyreg	(	enc28j60 *	ins,
		uint8_t	reg,
		uint16_t	content
	)

Write into PHY register.

Parameters

ins	Enc28j60 pointer
reg	Register to be written
content	New value of the register

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_readrevision()

int enc28j60_readrevision	(	enc28j60 *	ins,
		uint8_t *	rev
	)

Reads the revision number into *rev.

Parameters

ins	Enc28j60 pointer
rev	If not null, revision number will be stored here.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_softreset()

int enc28j60_softreset ( enc28j60 * ins )

Sends soft-reset and waits until the enc28j60 is operational again.

Implementation compliant with errata #2 and #19.

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_init()

int enc28j60_init	(	enc28j60 *	ins,
		enc28j60_init_struct *	init
	)

Initializes the enc28j60.

Compliant with errata #9.

Parameters

ins	Enc28j60 pointer
mac_addr	6 bytes long MAC address to be set.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_init_bank()

int enc28j60_init_bank ( enc28j60 * ins )

Reads the currently selected bank into ins->bank.

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_init_mac()

int enc28j60_init_mac	(	enc28j60 *	ins,
		char	mac_addr[6]
	)

Initializes the MAC address.

Parameters

ins	Enc28j60 pointer
mac_addr	6 bytes long MAC address to be set.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_writewritepointer()

int enc28j60_writewritepointer	(	enc28j60 *	ins,
		uint16_t	ptr
	)

Writes the EWRPTL:EWRPTH registers with given value.

Parameters

ins	Enc28j60 pointer
ptr	Value to be written into EWRPTL:EWRPTH register

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_readwritepointer()

int enc28j60_readwritepointer	(	enc28j60 *	ins,
		uint16_t *	ptr
	)

Reads the content of EWRPTL:EWRPTH register into *ptr if ptr is not null.

Parameters

ins	Enc28j60 pointer
ptr	If not null, it's where the value of EWRPTL:EWRPTH registers will be written to.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_writereadpointer()

int enc28j60_writereadpointer	(	enc28j60 *	ins,
		uint16_t	ptr
	)

Writes the ERDPTL:ERDPTH registers with given value.

Parameters

ins	Enc28j60 pointer
ptr	Value to be written into ERDPTL:ERDPTH register

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_readreadpointer()

int enc28j60_readreadpointer	(	enc28j60 *	ins,
		uint16_t *	ptr
	)

Reads the content of ERDPTL:ERDPTH register into *ptr if ptr is not null.

Parameters

ins	Enc28j60 pointer
ptr	If not null, it's where the value of ERDPTL:ERDPTH registers will be written to.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_init_txbuffer()

int enc28j60_init_txbuffer	(	enc28j60 *	ins,
		uint16_t	start,
		uint16_t	length
	)

Writes the ETXSTL:ETXSTH and ETXNDL:ETXNDH pointers.

NOTE: The last argument is length and not a pointer to end of the frame.

See also: enc28j60_transmitframe()

Parameters

ins	Enc28j60 pointer
start	Where the frame starts in buffer memory
length	How long the frame is (including the opcode if not using advanced SPI driver)

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_write()

int enc28j60_write	(	enc28j60 *	ins,
		uint16_t	start_ptr,
		char *	frame,
		uint16_t	length,
		enc28j60_spi_callback	on_finish
	)

Writes entire frame into enc28j60's memory.

See also: enc28j60_transmitframe()

Parameters

ins	Enc28j60 pointer
start_ptr	Where the frame starts in enc28j60's memory
frame	The frame to be written.
length	How long the frame is
on_finish	Callback to be called when the frame is written to the memory. If not null and if the underlying driver supports asynchronous transfer, this function will be asynchronous and this callback will get called once the transfer finishes with appropriate error code. Otherwise this transfer will be blocking and return the appropriate error code.

Returns: int If on_finish callback is not null, zero is returned and error code is passed to on_finish callback. Otherwise if given callback is null, zero is returned on succes and non-zero error in case of unrepairable error.

◆ enc28j60_writeframe()

int enc28j60_writeframe	(	enc28j60 *	ins,
		uint8_t	control,
		uint16_t	start_ptr,
		char *	frame,
		uint16_t	length,
		enc28j60_spi_callback	on_finish
	)

Writes control byte and entire frame into enc28j60's memory.

See also: enc28j60_transmitframe()

Parameters

ins	Enc28j60 pointer
control	The control byte written before the frame. See ENC28J60_PKTCTRL_* macros.
start_ptr	Where the frame starts in enc28j60's memory
frame	The frame to be written.
length	How long the frame is
on_finish	Callback to be called when the frame is written to the memory. If not null and if the underlying driver supports asynchronous transfer, this function will be asynchronous and this callback will get called once the transfer finishes with appropriate error code. Otherwise this transfer will be blocking and return the appropriate error code.

Returns: int If on_finish callback is not null, zero is returned and error code is passed to on_finish callback. Otherwise if given callback is null, zero is returned on succes and non-zero error in case of unrepairable error.

◆ enc28j60_istx()

int enc28j60_istx	(	enc28j60 *	ins,
		bool *	status
	)

Checks whenever the enc28j60 still transmits a frame and writes the corresponding status into *status

The transmission state should be checked before calling enc28j60_transmitframe().

Parameters

ins	Enc28j60 pointer
status	If not null, the status (true when still transmitting) will be written here.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_jointx()

int enc28j60_jointx ( enc28j60 * ins )

Waits until the transmission (if any in progress) finishes and then returns (or in case of unrepairable error it may return sooner).

Internally just uses enc28j60_istx().

See also: enc28j60_istx()

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

TODO: When there is not enough current during transmission, the enc28j60 bugs and ECON1.TXRTS remainins set infinitely. Make sure to add some protection against that, by for example time out.

◆ enc28j60_cleartxflags()

int enc28j60_cleartxflags ( enc28j60 * ins )

Clears EIR.TXIF and EIR.TXERIF flags.

Should be called after a frame finishes transmission or before starting new transmission.

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_transmitframe()

int enc28j60_transmitframe ( enc28j60 * ins )

Sets the ECON1.TXRTS flag in order to start transmission.

Before calling this make sure that there is no ongoing tranmission already taking place (by calling eithet enc28j60_istx() or enc28j60_jointx()).

Example usage (using advanced SPI driver. If you are not using version with advanced SPI driver, simply change the type of tx_frame from char* to enc28j60_header*):

int writeandtransmitframeblocking(uint16_t tx_start, char *tx_frame, uint16_t tx_length) {
   enc28j60_writeframe(&eth1, 0, tx_start, tx_frame, tx_length, NULL);
   enc28j60_init_txbuffer(&eth1, tx_start, tx_length);
   unsigned remaining_retries = 16;
   enc28j60_txstatus status;
   do {
       enc28j60_cleartxflags(&eth1);
       enc28j60_transmitframe(&eth1);
       enc28j60_jointx(&eth1);
       enc28j60_aftertx(&eth1);
       enc28j60_readtxstatus(&eth1, tx_start, tx_length, &status);
       enc28j60_decrementretries(&remaining_retries);
   } while(enc28j60_shouldretransmit(&status, remaining_retries));
}

See also: enc28j60_cleartxflags(); enc28j60_istx(); enc28j60_jointx(); enc28j60_readtxstatus(); enc28j60_decrementretries(); enc28j60_shouldretransmit(); enc28j60_transmitframeblocking()

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_aftertx()

int enc28j60_aftertx ( enc28j60 * ins )

Should be called when transmission finishes in order to avoid bug described in errata #12.

NOTE: Make sure to call this before enc28j60_cleartxflags().

Example usage (using advanced SPI driver. If you are not using version with advanced SPI driver, simply change the type of tx_frame from char* to enc28j60_header*):

enc28j60 eth1;
int transmitframeblocking(uint16_t tx_start, char *tx_frame, uint16_t tx_length) {
   enc28j60_writeframe(&eth1, 0, tx_start, tx_frame, tx_length, NULL);
   enc28j60_init_txbuffer(&eth1, tx_start, tx_length);
   unsigned remaining_retries = 16;
   enc28j60_txstatus status;
   do {
       enc28j60_cleartxflags(&eth1);
       enc28j60_transmitframe(&eth1);
       enc28j60_jointx(&eth1);
       enc28j60_aftertx(&eth1);
       enc28j60_readtxstatus(&eth1, tx_start, tx_length, &status);
       enc28j60_decrementretries(&remaining_retries);
   } while(enc28j60_shouldretransmit(&status, remaining_retries));
}

See also: enc28j60_transmitframe()

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_readtxstatus()

int enc28j60_readtxstatus	(	enc28j60 *	ins,
		uint16_t	tx_start,
		uint16_t	tx_length,
		enc28j60_txstatus *	status
	)

Reads the seven-byte-long status vector written after TXed frame.

Useful to determine whenever ENC28J60_TXSTATUS_LATE_COLLISION happened because of errata #15.

See also: enc28j60_transmitframe()

Parameters

ins	Enc28j60 pointer
tx_start	Where the frame starts in enc28j60's memory
tx_length	How long the frame is (including the opcode if not using advanced SPI driver)
status	Where the parsed data will be written to.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_decrementretries()

void enc28j60_decrementretries ( unsigned * remaining_tries )

Decrements *remaining_tries (if the pointer is not null) by one.

Added just for better readability?

Parameters

remaining_tries Pointing to variable to be decremented by one.

◆ enc28j60_shouldretransmit()

bool enc28j60_shouldretransmit	(	enc28j60_txstatus *	status,
		unsigned	remaining_tries
	)

Checks for late collision and returns true if late collision happened and remaining_tries is not zero.

Otherwise returns false.

This function was added so that code that is compliant with advice for errata #13 can be easily written.

See also: enc28j60_transmitframe()

Parameters

status	Read status used for status checking
remaining_tries	How many retries are there remaing

Returns: true When late collision happened and remaing_tries != 0; false When late collision did not happen or remaining_tries == 0

◆ enc28j60_transmitframeblocking()

int enc28j60_transmitframeblocking	(	enc28j60 *	ins,
		uint16_t	start_ptr,
		uint16_t	length
	)

Writes an ethernet frame of given length into enc28j60's memory starting at given pointer and transmits it with given control flags.

Compliant with errata #12, #13 and #15.

The functionality of this function can be summarised by the following code (not including the error checks for simplicity and readability and not including enc28j60 pointer but using static enc28j60 instance instead):

enc28j60 eth1;
int transmitframeblocking(uint16_t tx_start, uint16_t tx_length) {
   unsigned remaining_retries = 16;
   enc28j60_txstatus status;
   do {
       enc28j60_cleartxflags(&eth1);
       enc28j60_transmitframe(&eth1);
       enc28j60_jointx(&eth1);
       enc28j60_aftertx(&eth1);
       enc28j60_readtxstatus(&eth1, tx_start, tx_length, &status);
       enc28j60_decrementretries(&remaining_retries);
   } while(enc28j60_shouldretransmit(&status, remaining_retries));
}

Example usage (without error checks):

enc28j60_writeframe(&eth1, 0, tx_start, tx_frame, tx_frame_length, NULL);
enc28j60_init_txbuffer(&eth1, tx_start, tx_frame_length);
enc28j60_transmitframeblocking(&eth1, tx_start, tx_frame_length);

See also: enc28j60_transmitframe()

Parameters

ins	Enc28j60 pointer
start_ptr	Where the frame starts in enc28j60's memory
length	How long the frame is (including the opcode if not using advanced SPI driver)

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_read_try()

int enc28j60_read_try	(	enc28j60 *	ins,
		char *	frame,
		uint16_t	length,
		enc28j60_spi_callback	on_finish
	)

Try to read from enc28j60's memory.

If callback is present and underlying SPI driver supports it, this request is asynchronous. In case of any error, no retrying will be done and resulting error code will be immediately returned (or passed via a callback) to the user.

Do not forget to set read pointer by calling enc28j60_writereadpointer()

See also: enc28j60_writereadpointer()

Parameters

ins	Enc28j60 pointer
frame	The data will be read there.
length	Length of the data to read.
on_finish	Callback, optional, may be null. If not null and the underlying SPI driver supports asynchronous requests, the request will be asynchronous, the resulting error code will be handled over to given callback and zero will be returned. Otherwise if the SPI driver does not support asynchronous operation, or this callback is null, we will operate in synchronous mode and resulting error code will be returned.

Returns: int Zero on succes or non-zero error in case of error.

◆ enc28j60_read()

int enc28j60_read	(	enc28j60 *	ins,
		uint16_t	ptr,
		char *	rx,
		uint16_t	length,
		enc28j60_spi_callback	on_finish
	)

Try to read from enc28j60's memory.

If callback is present and underlying SPI driver supports it, this request is asynchronous. In case of any repairable error, we will retry until either succeding or failing with unrepairable error.

Parameters

ins	Enc28j60 pointer
ptr	Where to start reading from (pointer to enc28j60's memory)
frame	The data will be read there.
length	Length of the data to read.
on_finish	Callback, optional, may be null. If not null and the underlying SPI driver supports asynchronous requests, the request will be asynchronous, the resulting error code will be handled over to given callback and zero will be returned. Otherwise if the SPI driver does not support asynchronous operation, or this callback is null, we will operate in synchronous mode and resulting error code will be returned.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_readrxframescount()

int enc28j60_readrxframescount	(	enc28j60 *	ins,
		uint8_t *	cnt
	)

Reads the number of received frames waiting to be processed in the buffer memory (reds the EPKTCNT register).

NOTE: Use this to check whenever there are any frames in the rx buffer.

Parameters

ins	Enc28j60 pointer
cnt	If not null, the number of packets read will be written here.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_init_rxbuffer()

int enc28j60_init_rxbuffer	(	enc28j60 *	ins,
		uint16_t	start,
		uint16_t	end
	)

Claims space for RX buffer.

NOTE: To be compliant with errata #5, make sure that the buffer starts at address 0000h.

Parameters

ins	Enc28j60 pointer
start	Start (first byte pointer) of the RX buffer.
end	End (last byte pointer) of the RX buffer.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_readframe()

int enc28j60_readframe	(	enc28j60 *	ins,
		char *	frame,
		uint16_t	max_length,
		enc28j60_spi_callback	on_finish
	)

Reads six-bytes-long header and then reads the frame of given max length into memory location pointed to by frame.

Also updates enc28j60.rxstatus (see ENC28J60_RXSTATUS_* flags for testing) and fills enc28j60.length with the original length.

Before calling, make sure that there is frame in the buffer by checking the value read from enc28j60_readrxframescount(), otherwise corruption of localy stored pointers will happen and garbage will be read from enc28j60's memory.

See also: enc28j60_receiveframeblocking(); enc28j60_enablerx(); enc28j60_finishreadframe()

Parameters

ins	Enc28j60 pointer
frame	The frame will be read there.
max_length	Max length of the frame.
on_finish	Callback, optional, may be null. If not null and the underlying SPI driver supports asynchronous requests, the request will be asynchronous, the resulting error code will be handled over to given callback and zero will be returned. Otherwise if the SPI driver does not support asynchronous operation, or this callback is null, we will operate in synchronous mode and resulting error code will be returned.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_advancerxreadpointer()

int enc28j60_advancerxreadpointer ( enc28j60 * ins )

Writes the ERXRDPTL:ERXRDPTH registers-pointer with appropriate value to free up space in the buffer.

Compliant with errata #14.

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_finishreadframe()

int enc28j60_finishreadframe ( enc28j60 * ins )

Writes the ERXRDPTL:ERXRDPTH registers-pointer with appropriate value to free up space in the buffer and decrements EPKTCNT register by one.

Should be called after frame is received and read from the buffer.

Internally uses enc28j60_advancerxreadpointer(), compliant with errata #14.

See also: enc28j60_receiveframeblocking(); enc28j60_enablerx(); enc28j60_readframe()

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_receiveframeblocking()

int enc28j60_receiveframeblocking	(	enc28j60 *	ins,
		char *	frame,
		uint16_t	max_length,
		enc28j60_tick	timeout
	)

Wait until there is frame available in the buffer, read it into local memory, do cleanup and return.

If timeout is not zero, the time spent waiting will be limited to given number of ticks. Also updates enc28j60.rxstatus (see ENC28J60_RXSTATUS_* flags for testing) and fills enc28j60.length with the original length.

If you don't want this functioon to block, make sure to check number of received frames by calling enc28j60_readrxframescount(). If there is at least one frame in the memory stored already, this function won't block.

The functionality with timeout=0 is as following (not including error checks):

void receiveframeblocking(enc28j60 *ins, char *frame, uint16_t frame_len) {
    uint8_t cnt;
    do {
        // Loop until we have received any frame
        enc28j60_readrxframescount(ins, &cnt);
    } while(cnt == 0);
    enc28j60_readframe(ins, frame, frame_len, NULL);
    enc28j60_finishreadframe(ins);
}

See also: enc28j60_enablerx(); enc28j60_readframe(); enc28j60_finishreadframe()

Parameters

ins	Enc28j60 pointer
frame	Where the frame will be written to.
max_length	Maximum length of the frame
timeout	Timeout - how many ticks to wait at max before returning. If zero, the enc28j60 will wait infinitely long for a frame.

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_enablerx()

int enc28j60_enablerx ( enc28j60 * ins )

Enable reception of frames.

Sets ECON1.RXEN bit in order to enable reception of ethernet frames.

See also: enc28j60_receiveframeblocking(); enc28j60_readframe(); enc28j60_finishreadframe(); enc28j60_disablerx()

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_disablerx()

int enc28j60_disablerx ( enc28j60 * ins )

Disable reception of frames.

Clear ECON1.RXEN bit and waits until ESTAT.RXBUSY is clearead.

See also: enc28j60_enablerx()

Parameters

ins	Enc28j60 pointer

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_discardcrcerrors()

int enc28j60_discardcrcerrors	(	enc28j60 *	ins,
		bool	discard
	)

Discard frames that have invalid CRC checksum present.

Parameters

ins	Enc28j60 pointer
discard	true to discard packets with invalid CRC, false to keep them

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_enablemulticast()

int enc28j60_enablemulticast	(	enc28j60 *	ins,
		bool	enable
	)

Enable reception of frames with multicast destination address.

Parameters

ins	Enc28j60 pointer
discard	true to enable reception of frames with multicast destination, false to ignore them

Returns: int Zero on succes or non-zero error in case of unrepairable error.

◆ enc28j60_enablebroadcast()

int enc28j60_enablebroadcast	(	enc28j60 *	ins,
		bool	enable
	)

Enable reception of frames with broadcast destination address.

Parameters

ins	Enc28j60 pointer
discard	true to enable reception of frames with broadcast destination, false to ignore them

Returns: int Zero on succes or non-zero error in case of unrepairable error.

Classes

Macros

Typedefs

Functions

Detailed Description

Macro Definition Documentation

◆ ENC28J60_MAX_FRAMELEN

Typedef Documentation

◆ enc28j60_header

◆ enc28j60_spi_callback

Function Documentation

◆ enc28j60_blockingio()

◆ enc28j60_ensurebank()

◆ enc28j60_io8()

◆ enc28j60_io16()

◆ enc28j60_read8bitreg()

◆ enc28j60_write8bitreg()

◆ enc28j60_clear8bitreg()

◆ enc28j60_set8bitreg()

◆ enc28j60_read16bitreg()

◆ enc28j60_write16bitreg()

◆ enc28j60_clear16bitreg()

◆ enc28j60_set16bitreg()

◆ enc28j60_readphyreg()

◆ enc28j60_writephyreg()

◆ enc28j60_readrevision()

◆ enc28j60_softreset()

◆ enc28j60_init()

◆ enc28j60_init_bank()

◆ enc28j60_init_mac()

◆ enc28j60_writewritepointer()

◆ enc28j60_readwritepointer()

◆ enc28j60_writereadpointer()

◆ enc28j60_readreadpointer()

◆ enc28j60_init_txbuffer()

◆ enc28j60_write()

◆ enc28j60_writeframe()

◆ enc28j60_istx()

◆ enc28j60_jointx()

◆ enc28j60_cleartxflags()

◆ enc28j60_transmitframe()

◆ enc28j60_aftertx()

◆ enc28j60_readtxstatus()

◆ enc28j60_decrementretries()

◆ enc28j60_shouldretransmit()

◆ enc28j60_transmitframeblocking()

◆ enc28j60_read_try()

◆ enc28j60_read()

◆ enc28j60_readrxframescount()

◆ enc28j60_init_rxbuffer()

◆ enc28j60_readframe()

◆ enc28j60_advancerxreadpointer()

◆ enc28j60_finishreadframe()

◆ enc28j60_receiveframeblocking()

◆ enc28j60_enablerx()

◆ enc28j60_disablerx()

◆ enc28j60_discardcrcerrors()

◆ enc28j60_enablemulticast()

◆ enc28j60_enablebroadcast()
